Brand Name : Ruixin
Model Number : 1.5inch ~5.5inch
Certification : API
Place of Origin : China Baoji
MOQ : 1
Payment Terms : T/T
Supply Ability : 1 set 3 weeks
Delivery Time : 3-4 weeks
Packaging Details : Wooden Box
Name : Wireline Grab Three Legged Wierline Fishing Tools
Size : 1.5inch ~5.5inch
FN : 1.187~3.125inch
Material : Alloy Steel&Nickel Alloy
Connection : SR,QLS,BLQJ,HDQRJ
Advantage : Fishing slickline or cable lost down well bore
Application : Slickline& Wireline
Working Condition : Standard
Wireline Grab Two Legged Wierline Fishing Tools
I. Overview:
The spear in the steel wire is used to catch the steel wire broken in the tubing.
The inner fishing spear is composed of a salvage chamber composed of a male buckle top part and two Legged pieces. The tip piece is welded with a tip strip to form a hook shape to grasp the end of the broken steel wire that has formed a hook loop. When the wire breaks under the packing box, an integral object such as a slotted barrel wire finder must be inserted before lowering the fishing spear to determine the position of the broken end and smash it into a ball.
II. Common technical parameters:
Size | Fishing neck | Connection |
1.5" | 1.187" | 5/8UN |
1.75" | 1.375" | 15/16UN |
2.25" | 1.375" | 15/16UN |
3.5" | 1.75" | 1-1/16UN |
4.5" | 2.313" | 1-1/16UN |
5.5" | 3.125" | 1-9/16UN |
Note: Special specifications can be provided according to customer requirements.
III.matters needing attention:
Before using the inner spear in the steel wire, the wire finder must be lowered to form the steel wire nest underground to facilitate the smooth fishing of the inner spear.
Welcome to contact us at any time.
![]() |

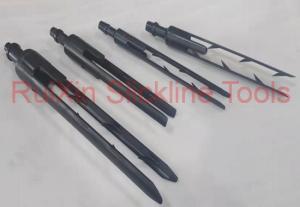

API Alloy Steel Two Legged Wireline Grab QLS Connection Images |
